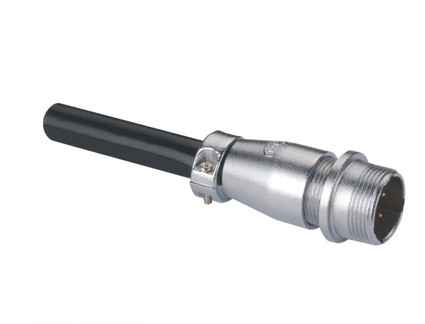

Description
No. of Contacts | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
Part No. | P16-2K | P16-3K | P16-4K | P16-5K | P16-6K | P16-7K | P16-8K | P16-9K |
Parts |
Material |
Shell | Zinc Alloy |
Finish | Nickel plating |
Insulator | Bakelite |
Contact | Copper Alloy |
No.Of contacts | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
Rated current/Voltage | 3A 220V | 3A 220V | 3A 220V | 3A 220V | 3A 220V | 3A 110V | 3A 50V | 3A 50V |
Operation limt voltage(AC.Vrms) | 0/250 | 0/250 | 0/250 | 0/130 | 0/130 | 0/130 | 0/50 | 0/50 |
Withstanding voltage(AC.V.rms)1 min. | 1000 | 1500 | 1800 | 1800 | 1500 | 1800 | 1800 | 1500 |
Insulation resistance (MΩ min.)at dc 500V | 1500 | 1500 | 2000 | 2000 | 1800 | 2000 | 2000 | 1500 |
Contact resistance(MΩ max.)at dc 1A | 1.0/3.0 | 2.0/3.0 | 3.0/5.0 | 3.0/5.0 | 4.0/6.0 | 4.0/6.0 | 3.0/6.0 | 3.0/6.0 |
Solder inter diameter | Φ 1.6 | Φ 1.6 | Φ 1 | Φ 1 | Φ 1 | Φ 1 | Φ 1 | Φ 1 |
